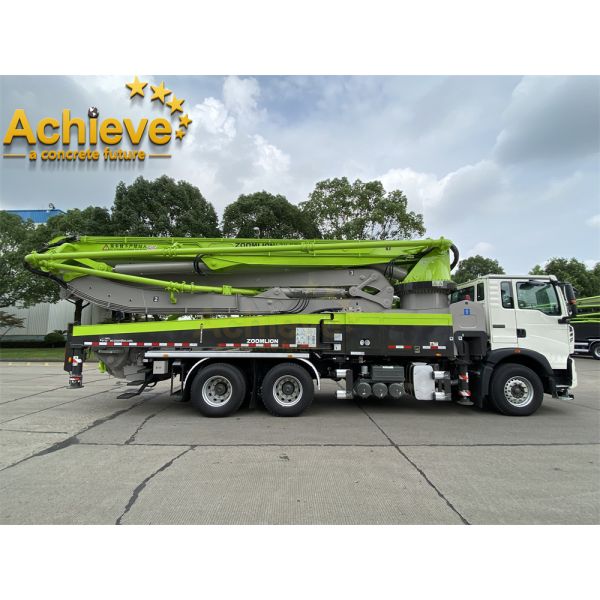

ZOOMLION 47M used ZOOMLION Hot Product zoomlion Boom Concrete Pump Trucks With Low Price for saleBrand New ZOOMLION Truck Mounted Pumps 47X-5RZ
• Compact in design, 47m pump mounted on a 3-axle truck.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably,
reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
| 最大理论输送量Max. Theor. output m3/h | 120/70 |
| 混凝土最大出口压力Max. Theor. concrete output Pressure MPa | 7/11 |
| 额定工作压力 Rated working pressure MPa | 35 |
| 泵送频率Pumping frequency min-1 | 22/13 |
| 料斗容积Hopper capacity L | 550 |
| 上料高度Filling height mm | 1540 |
| 液压系统型式Hydraulic system type | 闭式 Close loop |
| 分配阀形式Distribution valve | S管阀 S valve |
| 油缸缸径×行程 Oil cylinder dia.×stroke mm | φ130×2100 |
| 混凝土缸径×行程Concrete cylinder dia.×stroke mm | φ230×2100 |
| 液压油冷却Hydraulic oil cooling | 风冷 Air cooling |
| 推荐塌落度Recommended concrete slump cm | 12~23 |
| 最大骨料尺寸Max. aggregate dimension mm | 40 |
Q1:Are you a manufacture or a trading company?
A1:We are a trading company since 2018 year.
Q2:What is your advantage? - More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump ,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
A4:Normally we can work on T/T term or L/C term.
Q5:What about the delivery time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantity?
A7:The MOQ is 1 pcs.
| Model | Unit | 47X-5RZ |
| Pump Unit | Maximum theorical output | m3/h | 180/120 |
| Maximum pressure on concrete | bar | 80/120 |
| Conc. cylinders (diam. x stroke) | mm | 260x2100 |
| Concrete hopper capacity | L | 600 |
| Hydraulic circuit | | Open |
| Boom Section | Maximum vertical reach | m | 47 |
| Maximum horizontal distance | m | 42.7 |
| Minimum unfolding height | m | 9.7 |
| Section numbers | | 5 |
| Rotating angle | | ±270° |
| End hose lenght | m | 3 |
